[바닐라JS로 그림판 만들기] Styles part Two

[출처-유튜브 노마드 코더 Nomad Coders]

control하기 위해선 두 개의 버튼이 필요함. fill, save.

추가할 부분 ▼

<div class="controls__btns">
    <button id="jsMode">Fill</button>
    <button id="jsSave">Save</button>
</div>

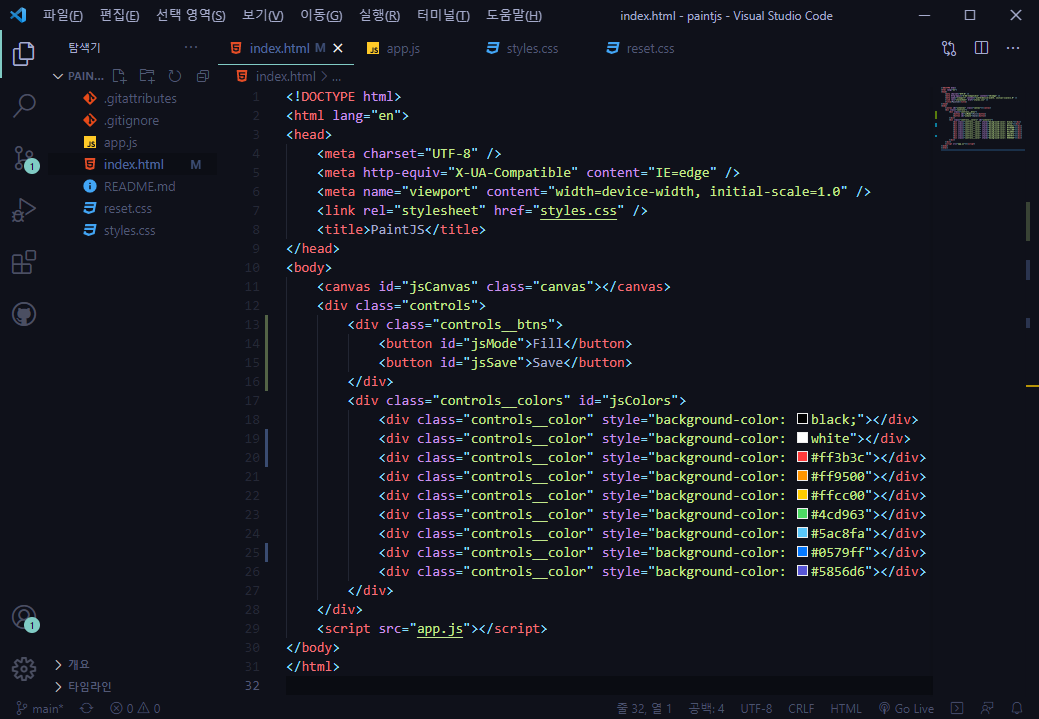

전체 코드 ▼

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="styles.css" />
    <title>PaintJS</title>
</head>
<body>
    <canvas id="jsCanvas" class="canvas"></canvas>
    <div class="controls">
        <div class="controls__btns">
            <button id="jsMode">Fill</button>
            <button id="jsSave">Save</button>
        </div>
        <div class="controls__colors" id="jsColors">
            <div class="controls__color" style="background-color: black;"></div>
            <div class="controls__color" style="background-color: white"></div>
            <div class="controls__color" style="background-color: #ff3b3c"></div>
            <div class="controls__color" style="background-color: #ff9500"></div>
            <div class="controls__color" style="background-color: #ffcc00"></div>
            <div class="controls__color" style="background-color: #4cd963"></div>
            <div class="controls__color" style="background-color: #5ac8fa"></div>
            <div class="controls__color" style="background-color: #0579ff"></div>
            <div class="controls__color" style="background-color: #5856d6"></div>
        </div>
    </div>
    <script src="app.js"></script>
</body>
</html>

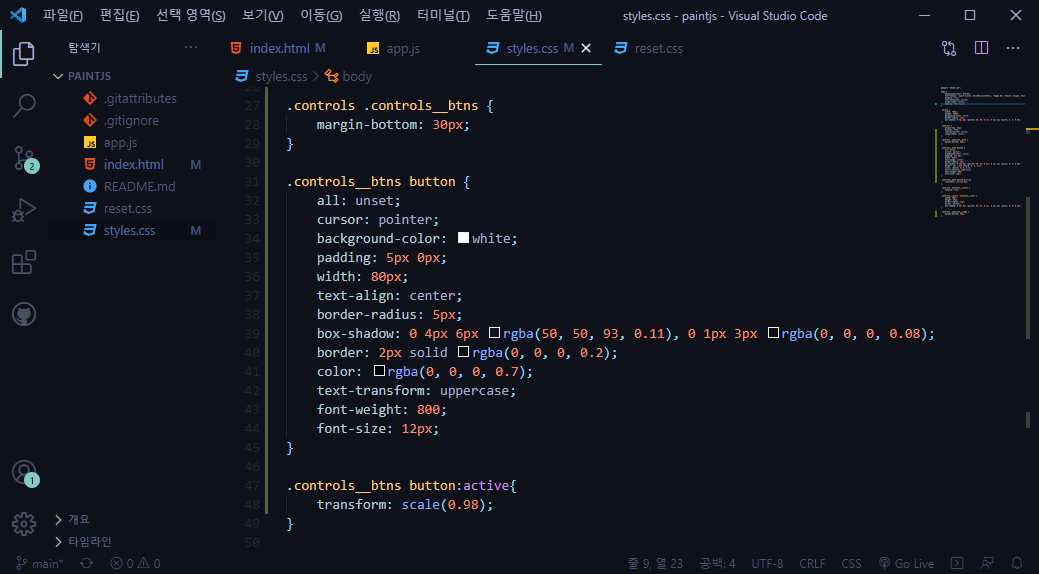

styles.css도 수정해준다.

@import "reset.css";

body {
    background-color: #f6f9fc;
    font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, Oxygen, Ubuntu, Cantarell, 'Open Sans', 'Helvetica Neue', sans-serif;
    display: flex;
    flex-direction: column;
    align-items: center;
    padding-top: 50px;
}

.canvas {
    width: 700px;
    height: 700px;
    background-color: white;
    border-radius: 15px;
    box-shadow: 0 4px 6px rgba(50, 50, 93, 0.11), 0 1px 3px rgba(0, 0, 0, 0.08);
}

.controls {
    margin-top: 80px;
    display: flex;
    flex-direction: column;
    align-items: center;
}

/* 추가 수정한 부분 */

.controls .controls__btns {
    margin-bottom: 30px;
}

.controls__btns button {
    all: unset;
    cursor: pointer;
    background-color: white;
    padding: 5px 0px;
    width: 80px;
    text-align: center;
    border-radius: 5px;
    box-shadow: 0 4px 6px rgba(50, 50, 93, 0.11), 0 1px 3px rgba(0, 0, 0, 0.08);
    border: 2px solid rgba(0, 0, 0, 0.2);
    color: rgba(0, 0, 0, 0.7);
    text-transform: uppercase;
    font-weight: 800;
    font-size: 12px;
}

.controls__btns button:active{
    transform: scale(0.98);
}

/* ↑ 이까지 수정한 부분! */

.controls .controls__colors {
    display: flex;
}

.controls__colors .controls__color {
    width: 50px;
    height: 50px;
    border-radius: 25px;
    cursor: pointer;
    box-shadow: 0 4px 6px rgba(50, 50, 93, 0.11), 0 1px 3px rgba(0, 0, 0, 0.08);
}

이제 button 위에 Range input을 넣을 것임.

추가할 부분 ▼

<div class="controls__range">
    <input type="range" id="jsRange" />
</div>

전체 코드 ▼

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="styles.css" />
    <title>PaintJS</title>
</head>
<body>
    <canvas id="jsCanvas" class="canvas"></canvas>
    <div class="controls">
        <div class="controls__range">
            <input type="range" id="jsRange" />
        </div>
        <div class="controls__btns">
            <button id="jsMode">Fill</button>
            <button id="jsSave">Save</button>
        </div>
        <div class="controls__colors" id="jsColors">
            <div class="controls__color" style="background-color: black;"></div>
            <div class="controls__color" style="background-color: white"></div>
            <div class="controls__color" style="background-color: #ff3b3c"></div>
            <div class="controls__color" style="background-color: #ff9500"></div>
            <div class="controls__color" style="background-color: #ffcc00"></div>
            <div class="controls__color" style="background-color: #4cd963"></div>
            <div class="controls__color" style="background-color: #5ac8fa"></div>
            <div class="controls__color" style="background-color: #0579ff"></div>
            <div class="controls__color" style="background-color: #5856d6"></div>
        </div>
    </div>
    <script src="app.js"></script>
</body>
</html>

styles.css도 수정한다.

추가할 부분 ▼

.controls .controls__range {
    margin-bottom: 30px;
}

전체 코드 ▼

@import "reset.css";

body {
    background-color: #f6f9fc;
    font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, Oxygen, Ubuntu, Cantarell, 'Open Sans', 'Helvetica Neue', sans-serif;
    display: flex;
    flex-direction: column;
    align-items: center;
    padding-top: 50px;
}

.canvas {
    width: 700px;
    height: 700px;
    background-color: white;
    border-radius: 15px;
    box-shadow: 0 4px 6px rgba(50, 50, 93, 0.11), 0 1px 3px rgba(0, 0, 0, 0.08);
}

.controls {
    margin-top: 80px;
    display: flex;
    flex-direction: column;
    align-items: center;
}

.controls .controls__btns {
    margin-bottom: 30px;
}

.controls__btns button {
    all: unset;
    cursor: pointer;
    background-color: white;
    padding: 5px 0px;
    width: 80px;
    text-align: center;
    border-radius: 5px;
    box-shadow: 0 4px 6px rgba(50, 50, 93, 0.11), 0 1px 3px rgba(0, 0, 0, 0.08);
    border: 2px solid rgba(0, 0, 0, 0.2);
    color: rgba(0, 0, 0, 0.7);
    text-transform: uppercase;
    font-weight: 800;
    font-size: 12px;
}

.controls__btns button:active{
    transform: scale(0.98);
}

.controls .controls__colors {
    display: flex;
}

.controls__colors .controls__color {
    width: 50px;
    height: 50px;
    border-radius: 25px;
    cursor: pointer;
    box-shadow: 0 4px 6px rgba(50, 50, 93, 0.11), 0 1px 3px rgba(0, 0, 0, 0.08);
}

.controls .controls__range {
    margin-bottom: 30px;
}

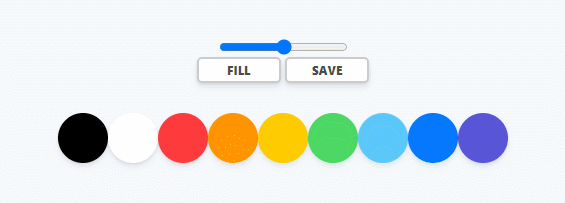

적용해보면서 수정할 부분을 index.html에서 수정해준다.

추가할 부분 ▼

<div class="controls__range">
    <input type="range" id="jsRange" min="0.1" max="5" value="2.5" step="0.1" />
</div>

전체 코드 ▼

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="styles.css" />
    <title>PaintJS</title>
</head>
<body>
    <canvas id="jsCanvas" class="canvas"></canvas>
    <div class="controls">
        <div class="controls__range">
            <input type="range" id="jsRange" min="0.1" max="5" value="2.5" step="0.1" />
        </div>
        <div class="controls__btns">
            <button id="jsMode">Fill</button>
            <button id="jsSave">Save</button>
        </div>
        <div class="controls__colors" id="jsColors">
            <div class="controls__color" style="background-color: black;"></div>
            <div class="controls__color" style="background-color: white"></div>
            <div class="controls__color" style="background-color: #ff3b3c"></div>
            <div class="controls__color" style="background-color: #ff9500"></div>
            <div class="controls__color" style="background-color: #ffcc00"></div>
            <div class="controls__color" style="background-color: #4cd963"></div>
            <div class="controls__color" style="background-color: #5ac8fa"></div>
            <div class="controls__color" style="background-color: #0579ff"></div>
            <div class="controls__color" style="background-color: #5856d6"></div>
        </div>
    </div>
    <script src="app.js"></script>
</body>
</html>

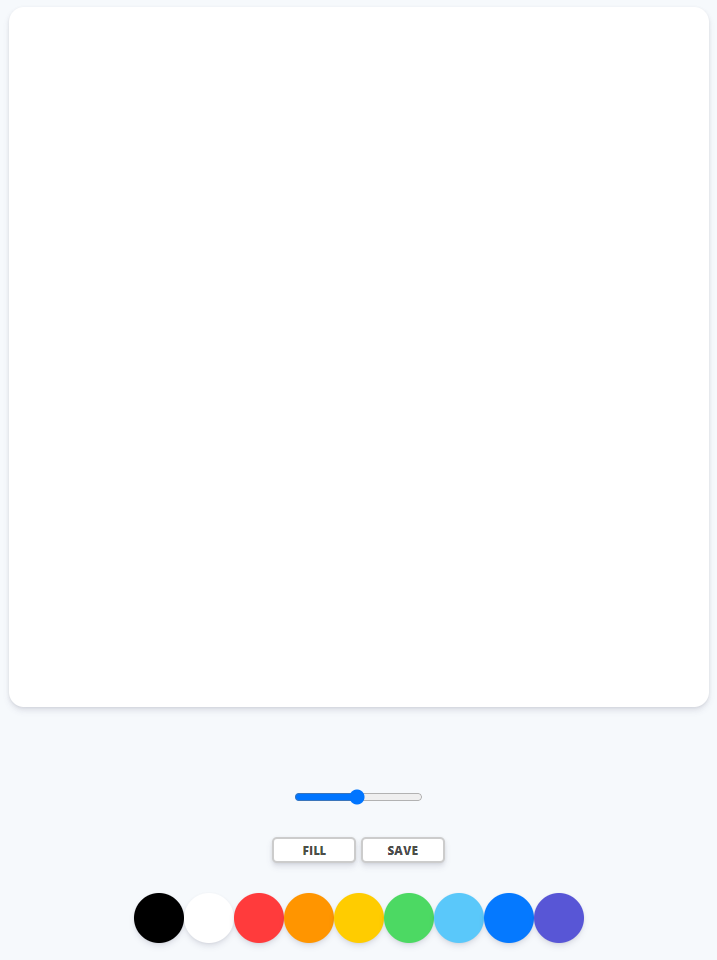

마지막으로 styles.css에 body 부분의 padding을 수정해준다.

body {
    background-color: #f6f9fc;
    font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, Oxygen, Ubuntu, Cantarell, 'Open Sans', 'Helvetica Neue', sans-serif;
    display: flex;
    flex-direction: column;
    align-items: center;
    padding: 50px 0px;
}

~~니꼬쌤.... 코딩속도가 너무 빨라요... 제자는 강의를 몇번이고 다시 돌려서 봅니다 크흑~~
