[바닐라JS로 그림판 만들기] Filling Mode

[출처-유튜브 노마드 코더 Nomad Coders]

https://youtu.be/2m_WnYeI1pA

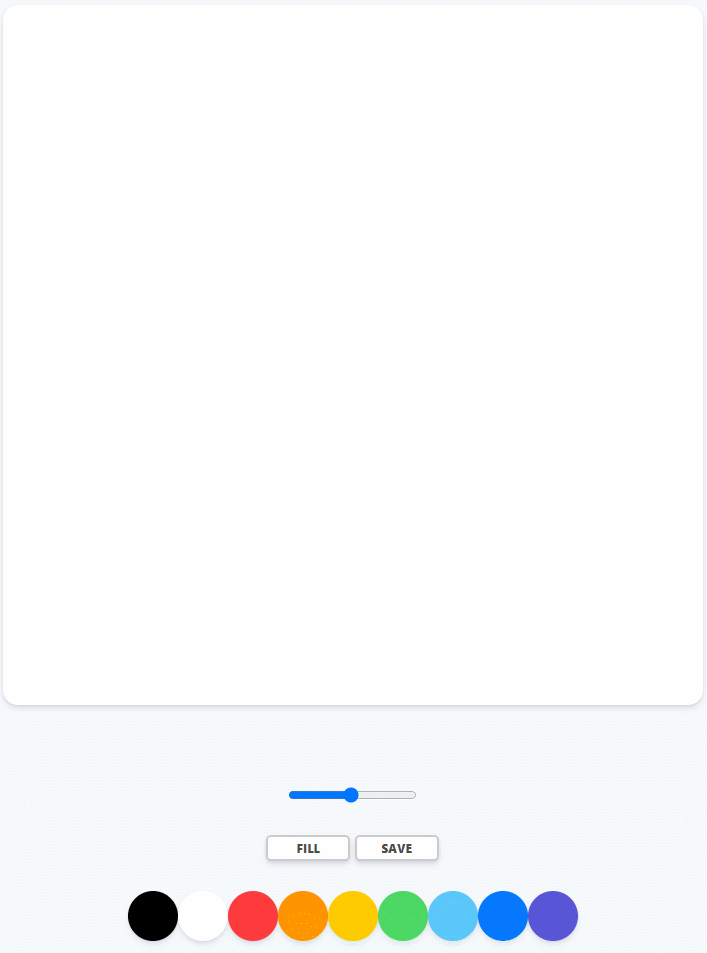

Fill 버튼을 누르고 색상을 선택한 후 canvas를 클릭하면

그 색상으로 canvas가 채워지는 것을 할 것이다.



fillRect()

width와 height에 의해서 결정된 사이즈로 (x, y) 위치에 색칠된 사각형을 그림.



추가할 것▼

ctx.fillRect(50, 20, 100, 49); // x, y, width, height





app.js

const canvas = document.getElementById("jsCanvas");
const ctx = canvas.getContext("2d");
const colors = document.getElementsByClassName("jsColor");
const range = document.getElementById("jsRange");
const mode = document.getElementById("jsMode");

canvas.width = 700;
canvas.height = 700;

ctx.strokeStyle = "#2c2c2c";
ctx.lineWidth = 2.5;

ctx.fillRect(50, 20, 100, 49); // x, y, width, height

let painting = false;
let filling = false;

function stopPainting() {
    painting = false;
}

function startPainting() {
    painting = true;
}

function onMouseMove(event) {
    const x = event.offsetX;
    const y = event.offsetY;
    if(!painting){
        ctx.beginPath();
        ctx.moveTo(x, y);
    } else {
        ctx.lineTo(x, y);
        ctx.stroke();
    }
}

function handleColorClick(event) {
    const color = event.target.style.backgroundColor;
    ctx.strokeStyle = color;
}

function handleRangeChange(event) {
    const size = event.target.value;
    ctx.lineWidth = size;
}

function handleModeClick() {
    if(filling === true) {
        filling = false;
        mode.innerText = "Fill";
    } else {
        filling = true;
        mode.innerText = "Paint";
    }
}

if(canvas) {
    canvas.addEventListener("mousemove", onMouseMove);
    canvas.addEventListener("mousedown", startPainting);
    canvas.addEventListener("mouseup", stopPainting);
    canvas.addEventListener("mouseleave", stopPainting);
}

Array.from(colors).forEach(color =>
    color.addEventListener("click", handleColorClick)
);

if(range) {
    range.addEventListener("input", handleRangeChange);
}

if(mode) {
    mode.addEventListener("click", handleModeClick);
}

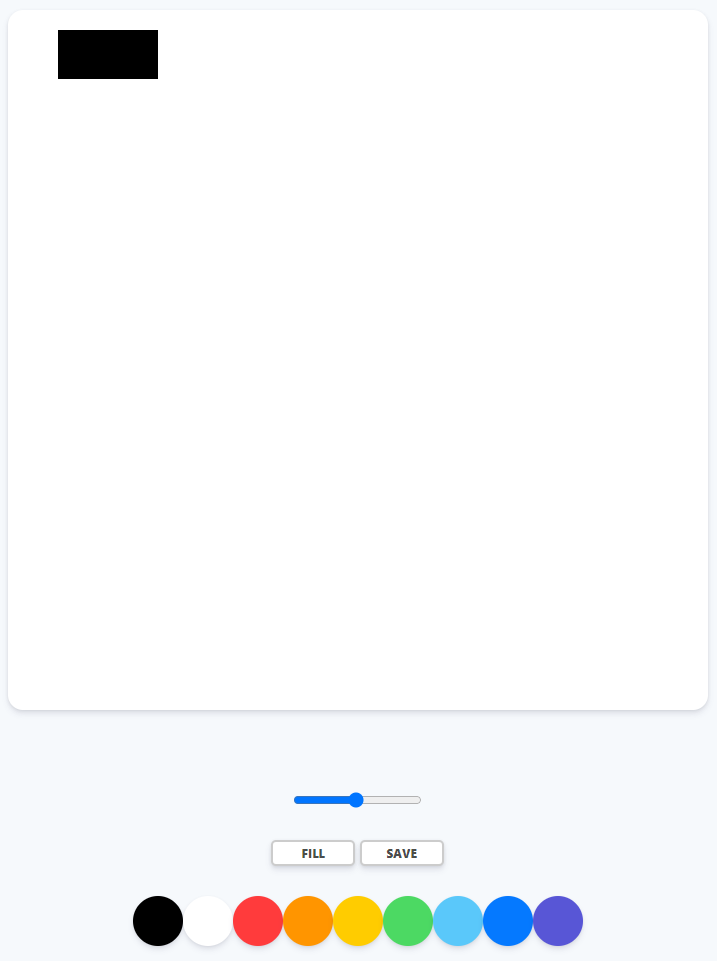

x, y 좌표에 사각형이 생김







하지만 fillRect()이 strokeStyle은 적용하지 못하고 있다.

fillStyle()로 대신하자.

app.js에 다음 코드를 추가한다.

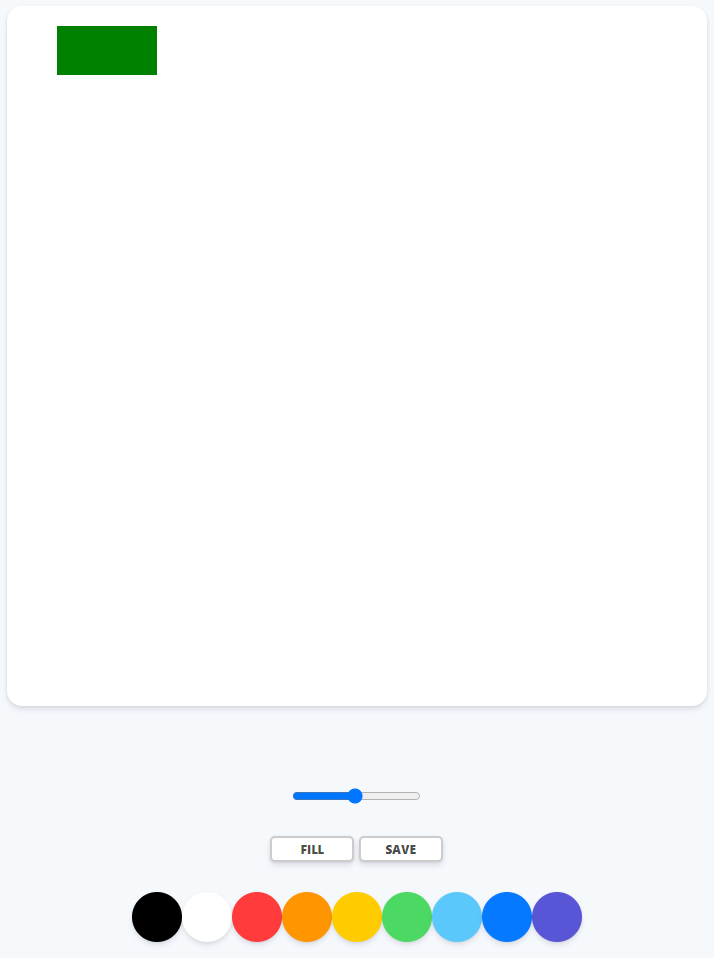

ctx.fillStyle = "green";







수정할 것▼

function handleColorClick(event) {
    const color = event.target.style.backgroundColor;
    ctx.strokeStyle = color;
    ctx.fillStyle = color;
}

const INITIAL_COLOR = "#2c2c2c"

ctx.strokeStyle = INITIAL_COLOR;
ctx.fillStyle = INITIAL_COLOR;





app.js

const canvas = document.getElementById("jsCanvas");
const ctx = canvas.getContext("2d");
const colors = document.getElementsByClassName("jsColor");
const range = document.getElementById("jsRange");
const mode = document.getElementById("jsMode");

const INITIAL_COLOR = "#2c2c2c"

canvas.width = 700;
canvas.height = 700;

ctx.strokeStyle = INITIAL_COLOR;
ctx.fillStyle = INITIAL_COLOR;
ctx.lineWidth = 2.5;

let painting = false;
let filling = false;

function stopPainting() {
    painting = false;
}

function startPainting() {
    painting = true;
}

function onMouseMove(event) {
    const x = event.offsetX;
    const y = event.offsetY;
    if(!painting){
        ctx.beginPath();
        ctx.moveTo(x, y);
    } else {
        ctx.lineTo(x, y);
        ctx.stroke();
    }
}

function handleColorClick(event) {
    const color = event.target.style.backgroundColor;
    ctx.strokeStyle = color;
    ctx.fillStyle = color;
}

function handleRangeChange(event) {
    const size = event.target.value;
    ctx.lineWidth = size;
}

function handleModeClick() {
    if(filling === true) {
        filling = false;
        mode.innerText = "Fill";
    } else {
        filling = true;
        mode.innerText = "Paint";
    }
}

if(canvas) {
    canvas.addEventListener("mousemove", onMouseMove);
    canvas.addEventListener("mousedown", startPainting);
    canvas.addEventListener("mouseup", stopPainting);
    canvas.addEventListener("mouseleave", stopPainting);
}

Array.from(colors).forEach(color =>
    color.addEventListener("click", handleColorClick)
);

if(range) {
    range.addEventListener("input", handleRangeChange);
}

if(mode) {
    mode.addEventListener("click", handleModeClick);
}







그다음엔 clicking에 관한 addEventListener을 하나 더 만든다.

(canvas를 click하는 것)

const canvas = document.getElementById("jsCanvas");
const ctx = canvas.getContext("2d");
const colors = document.getElementsByClassName("jsColor");
const range = document.getElementById("jsRange");
const mode = document.getElementById("jsMode");

const INITIAL_COLOR = "#2c2c2c"
const CANVAS_SIZE = 700;

canvas.width = CANVAS_SIZE;
canvas.height = CANVAS_SIZE;

ctx.strokeStyle = INITIAL_COLOR;
ctx.fillStyle = INITIAL_COLOR;
ctx.lineWidth = 2.5;

let painting = false;
let filling = false;

function stopPainting() {
    painting = false;
}

function startPainting() {
    painting = true;
}

function onMouseMove(event) {
    const x = event.offsetX;
    const y = event.offsetY;
    if(!painting){
        ctx.beginPath();
        ctx.moveTo(x, y);
    } else {
        ctx.lineTo(x, y);
        ctx.stroke();
    }
}

function handleColorClick(event) {
    const color = event.target.style.backgroundColor;
    ctx.strokeStyle = color;
    ctx.fillStyle = color;
}

function handleRangeChange(event) {
    const size = event.target.value;
    ctx.lineWidth = size;
}

function handleModeClick() {
    if(filling === true) {
        filling = false;
        mode.innerText = "Fill";
    } else {
        filling = true;
        mode.innerText = "Paint";
    }
}

function handleCanvasClick() {
    ctx.fillRect(0, 0, CANVAS_SIZE, CANVAS_SIZE);  // canvas만큼 커야 한다
}

if(canvas) {
    canvas.addEventListener("mousemove", onMouseMove);
    canvas.addEventListener("mousedown", startPainting);
    canvas.addEventListener("mouseup", stopPainting);
    canvas.addEventListener("mouseleave", stopPainting);
    canvas.addEventListener("click", handleCanvasClick);
}

Array.from(colors).forEach(color =>
    color.addEventListener("click", handleColorClick)
);

if(range) {
    range.addEventListener("input", handleRangeChange);
}

if(mode) {
    mode.addEventListener("click", handleModeClick);
}

fill은 잘 되는데 뭔가가 이상하다. 선을 그리는 중에 다시 fill로 변함.









그래서 filling variable이 필요한 것이다.

function handleCanvasClick() {
    if (filling) {
        ctx.fillRect(0, 0, CANVAS_SIZE, CANVAS_SIZE);  // canvas만큼 커야 한다
    }
}

작동이 잘 된다.
